Jewelry Polishing Tool Rock Flint Hard Soft Wool Felt Disc Buff Wheel For Lapping

Short Description:

  • 100% Premium Wool Felt: Made of tightly compressed natural wool fibers, providing high elasticity, superior compound absorption, and long-lasting wear resistance without shedding.
  • 4-Slot Split Lap Visibility: Precision radial slots create a transparent optical effect when spinning, allowing operators to monitor the polishing contact point in real-time.
  • Full Hardness Gradient: From Soft (contour finishing & high-luster shine) to Flint Hard (aggressive cutting & flat-edge lapping), covering every stage of grinding and buffing.
  • Beveled & Tapered Edge Profile: Precision-machined edge allows easy access to tight crevices, inside curves, and fine contours of jewelry, watches, and complex workpieces.
  • OEM & Private Label Support: Full custom support for outer diameter, thickness, center arbor hole size, hardness rating, and branded center label stickers.










Product Detail

Contact US

Rolking Felt · Precision Abrasive Systems · Paramount Grade

100% Wool Split Lap Buffing Wheel

A slotted felt lap wheel built for horology, fine jewellery, silverware, golf club heads, turbine blades and precision moulds. The 4-slot split lap design opens a see-through spinning view at speed, so the operator can watch the contact point on the workpiece and stop before the surface is over-polished.

  • 4″ / 6″ / 7″ & Custom
  • 100% Pure Wool Felt
  • Soft → Flint Hard
  • Pin Hole for Tapered Spindle
  • 4-Slot See-Through Design

Specified under these search terms

split lap buffing wheel
slotted felt lap wheel
100% wool polishing wheel
precision split lap disc
watch case polishing wheel
jewellery buffing wheel
flint hard felt lap
see-through spinning lap
tapered spindle felt wheel
OEM custom felt buffing wheel

01 / Why this wheel

Six reasons polishing rooms standardise on it

Every wheel is engineered, trued and balanced on the same principle: give the polisher a predictable face, an honest view of the work, and a felt body that holds compound instead of throwing it away.

01 — VISIBILITY

4-Slot See-Through Face

Four precisely spaced radial slits turn the spinning face into a stroboscopic window. The operator sees the polishing contact point and the article surface directly, which is the single biggest defence against over-polishing a watch bezel or a plated jewellery surface.

02 — ABRASIVE RETENTION

Compound Stays on the Face

Dense compressed pure wool felt holds diamond paste, rouge and polishing compound in the fibre body rather than slinging it off the rim, so one charge works longer and finishes stay consistent across a batch.

03 — THERMAL

Cool Running, Less Distortion

Wool felt is a naturally open, low-conduction structure; combined with the slotted face it breaks contact periodically and lets heat bleed away. Thin silver sections and precious-metal plating stay cooler, reducing burnishing and drag marks.

04 — BALANCE

Trued, Balanced, Ready

Each wheel is balanced to run smoothly on the spindle and the centre hole is located dead centre, so the lap runs true at speed without hammer or wobble. Thickness is 1/2″ with beveled edges as standard.

05 — GRADING

Five Hardness Grades

Soft, Medium, Hard, Rock Hard and Flint Hard let one polishing room match the lap to the substrate — from delicate plated watch cases through to hard tool steel and silver flatware that needs to bite.

06 — OEM/ODM

Made to Your Drawing

Diameter, thickness, slot count, slot width, centre-hole form and hardness are all production variables. Send a drawing or a sample and we build the lap wheel to it, under your own brand if required.

02 / Working principle

How the 4-slot see-through split lap works

A split lap is not a solid buff. The face is parted by four radial slots that survive the whole life of the wheel; at working speed those slots become an intermittent viewing channel across the contact zone. This is the mechanic that separates a precision split lap disc from an ordinary felt buffing wheel.



Live view · 4 radial slots · contact point stays visible at speed

  1. Slots are cut, not worn in
    Four radial slits are part of the manufactured geometry of the wheel, so the see-through behaviour is identical on the first article and on the five-hundredth.
  2. The face becomes a strobe window
    As the lap spins, each slot sweeps the contact zone many times per second. To the eye it reads as a translucent, blinking window over the workpiece rather than a solid grey disc.
  3. Contact point is read directly
    The polisher watches the actual point where felt meets metal — watch case, bezel, silver body or mould cavity — and lifts off as soon as the scratch pattern clears.
  4. Interrupted cutting controls heat and pull
    Breaking contact four times per revolution reduces sustained drag and heat build-up, and makes the lap far less likely to grab thin edges or snag an engraved surface.

03 / Specification

Dimensions, hardness and mounting

Standard builds are listed below. Any dimension marked adjustable can be produced to your drawing for OEM and ODM programmes.

Product 100% Wool Split Lap Buffing Wheel — Paramount Grade, slotted felt lap wheel for precision polishing and lapping
Material 100% pure wool felt, high density, compressed and trued

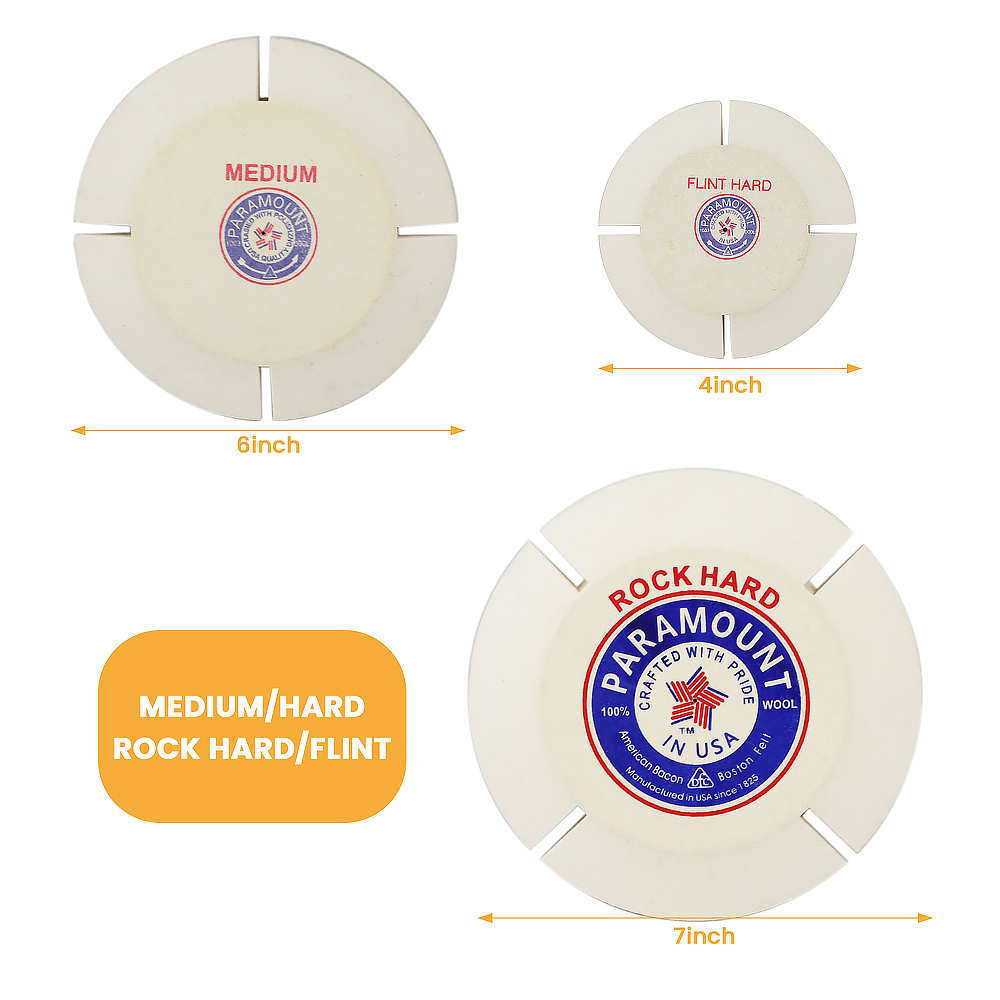

Diameter 4" (100 mm) · 6" (150 mm) · 7" (180 mm) · custom diameters on request
Thickness 1/2″ (13 mm) standard · adjustable
Centre hole Pin hole for tapered spindle, located precisely at centre · bore size adjustable
Slot configuration 4 radial slots (4-slot split lap) · slot count and slot width adjustable
Edge finish Beveled edges as standard, so the lap does not cut a hard line into the workpiece

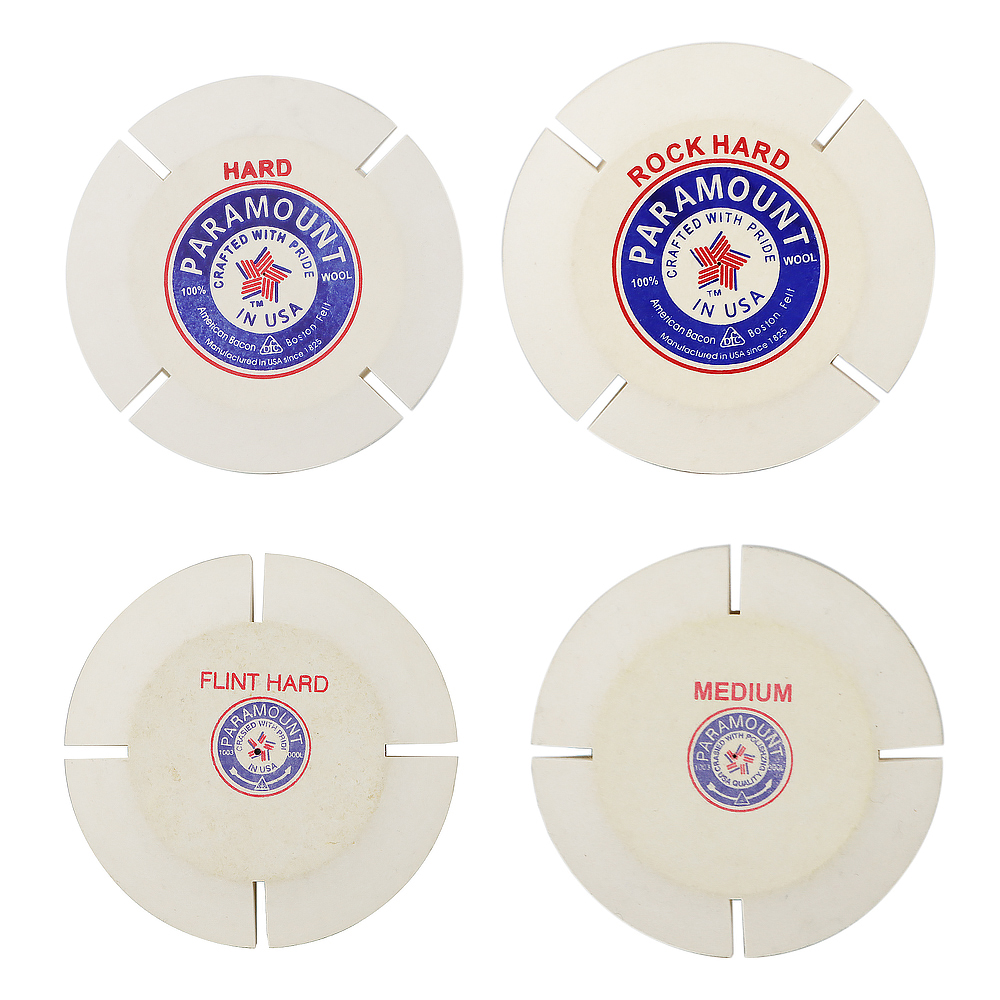

Hardness grades Soft · Medium · Hard · Rock Hard · Flint Hard
Balance Individually balanced for smooth high-speed running without wobble
Consumables Compatible with diamond paste, rouge, alumina and general polishing compounds
Customisation Diameter, thickness, hardness, slot geometry, centre hole and private-label packing (OEM / ODM)

04 / Selection guide

Choosing the right hardness grade

Hardness controls how much the felt face compresses under load: a softer lap follows contours and protects plating, a harder lap stays flat and cuts faster. The bars below indicate relative face rigidity, not performance ranking.

SoftRELATIVE RIGIDITY 20

Delicate and contoured work: plated watch cases, thin gold settings, silver holloware details. Conforms to the surface and keeps pressure light.

MediumRELATIVE RIGIDITY 42

The general-purpose grade for jewellery, watch bracelets, golf club heads and mixed batches where one lap must cover several shapes.

HardRELATIVE RIGIDITY 62

Flat faces and defined edges: watch case flanks, silver flatware, stainless fittings and pre-polish on mould cavities.

Rock HardRELATIVE RIGIDITY 82

Where the lap must stay absolutely flat and cut aggressively: tool steel, tungsten carbide tooling, hard alloy turbine components.

Flint HardRELATIVE RIGIDITY 100

The densest, most rigid grade. Heavy stock removal and mirror finishing on hard metals, silverware bodies and demanding lapping operations.

05 / Applications

Where split lap wheels earn their place

One wheel family, four very different polishing rooms — the common thread is a surface where a visible contact point and controlled heat matter more than raw speed.

Horology & Watchmaking

Watch cases, bezels, case flanks and bracelet links. The see-through spinning window lets the polisher follow the original case geometry and stop at the exact moment the drag line disappears.

  • Case and bezel face restoration
  • Bevel and satin-to-polish transitions
  • Worked with diamond paste and fine rouge

Jewellery & Silverware

Gold, platinum and sterling silver, plus holloware such as teapots, trays and trophies. Wool felt holds rouge in the body of the lap, giving a deep, even lustre without the risk of cutting through plating.

  • Precious-metal pre-polish and colour
  • Silver holloware bodies and spouts
  • Small components held to flat faces

Aerospace & Turbine Components

Turbine blades, vane edges, golf club heads and mirror-finished investment castings. Hard and Rock Hard grades hold a flat face while the operator inspects the edge radius through the slots.

  • Turbine blade and vane finishing
  • Golf club head sole and crown polish
  • Mirror finishing on cast alloy surfaces

Precision Tooling & Dies

Mould cavities, die faces, punches and gauge blocks, plus knives, chisels, glass, stone, fibre-glass and hard plastics. Flint Hard and Rock Hard laps are used dry or lightly charged for stock removal.

  • Injection mould and die faces
  • Edge honing on knives and chisels
  • Hard plastics, stone and glass work

06 / Product & application gallery

The lap wheel in the hand and on the machine

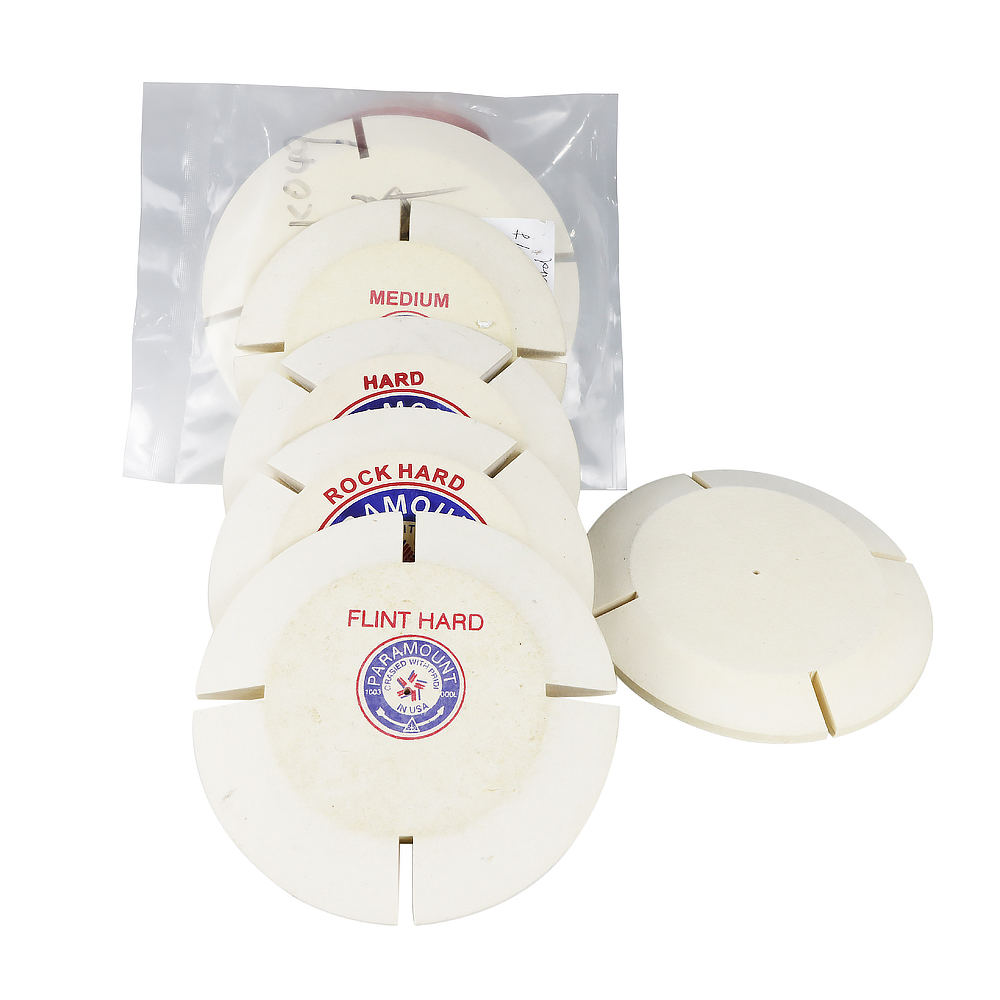

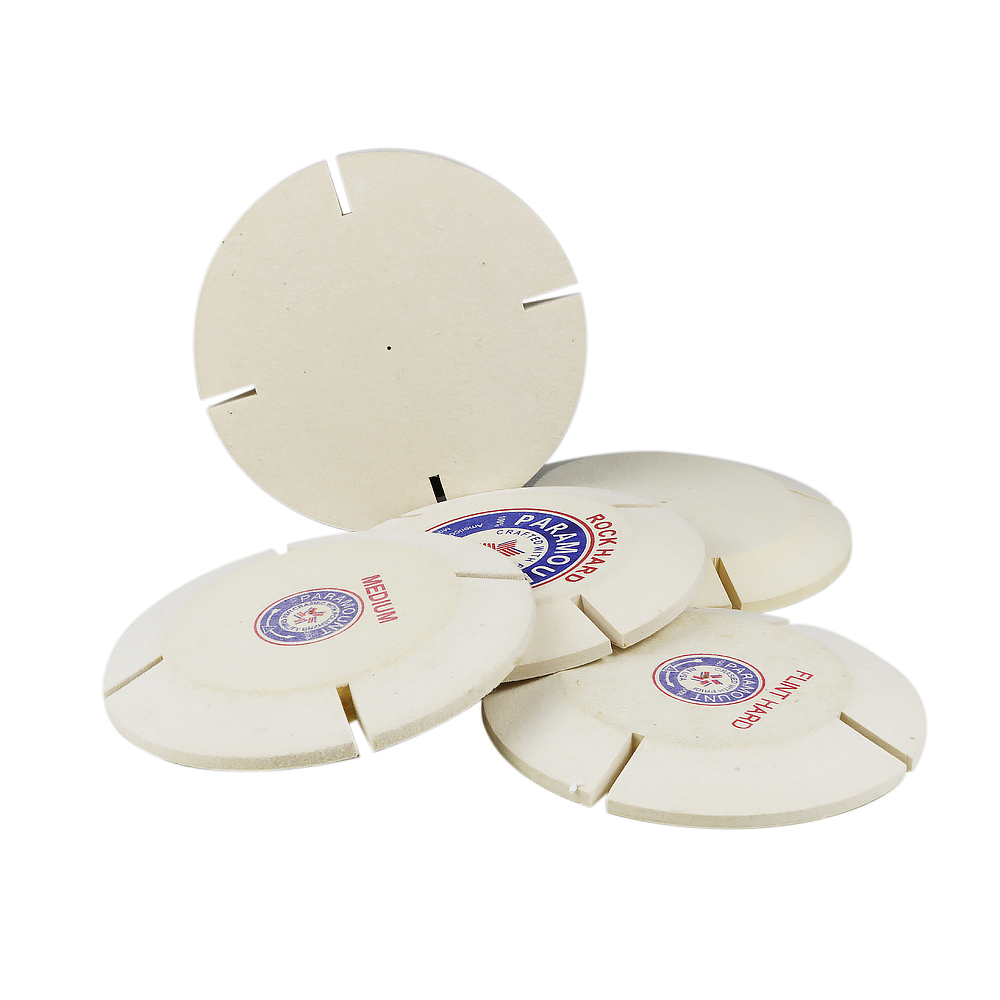

Eight reference views covering the finished wheel, the 4-slot geometry, the workshop set-up and the finishing results this split lap delivers.

07 / OEM & ODM

Built to your drawing, shipped under your brand

Because every parameter of a felt split lap is a manufacturing variable, we build wheels around your polishing process rather than asking you to fit around ours.

Rolking Felt supplies wholesale and private-label split lap buffing wheels to jewellery workshops, watch service centres, metal finishers and tooling distributors. Send us the drawing, the sample or simply the application — substrate, finish target and spindle type — and we will recommend the diameter, hardness and slot configuration that fits it.

  • Diameter — 4″, 6″, 7″ or fully custom
  • Thickness — 1/2″ standard, thicker or thinner on request
  • Hardness — Soft, Medium, Hard, Rock Hard, Flint Hard
  • Slot geometry — slot count and slot width to specification
  • Centre hole — pin hole for tapered spindle, bore size to match your machine
  • Branding — private-label packing, printed labels and OEM barcodes
  • Sampling — pre-production samples for trial polishing before volume runs
  • Batch supply — consistent felt density and balance across repeat orders

08 / Export packing

Export master carton & individual polybag

Every shipment leaves the workshop packed for long-haul export. Each wheel is bagged on its own so the felt face arrives clean and true, then the bags are stacked in a rigid export master carton rated for container and air freight.

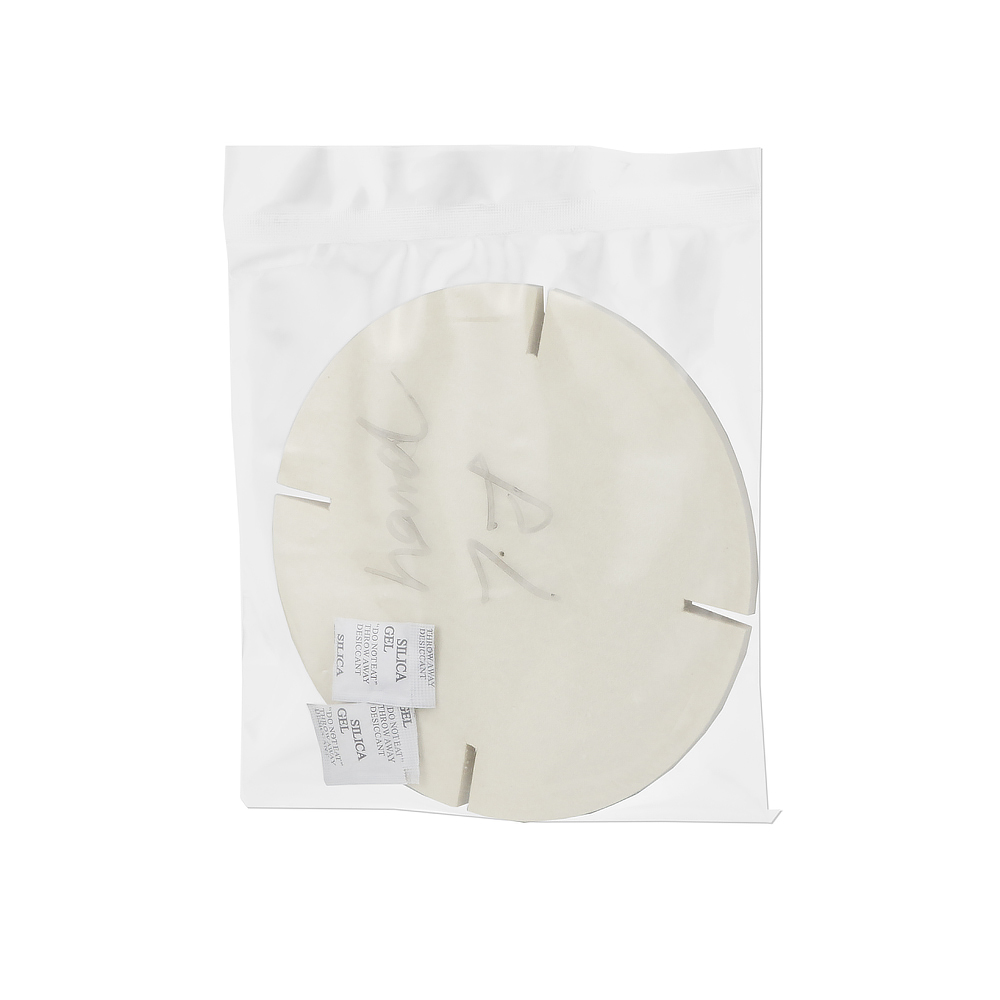

Individual Polybag

Each 100% wool split lap wheel is sealed in its own polybag before cartoning, so wool fibres, slot edges and bevels are protected from dust, moisture and scuffing in transit.

  • One wheel per bag – face, slot geometry and bevel stay true
  • Dust and moisture barrier for sea and air freight
  • Optional printed label with size, hardness grade and your part number

Export Master Carton

Bagged wheels are packed in a rigid corrugated master carton. Reference build: 7 inch x 1/2 inch x 1-1/4 inch wheels, 20 pcs per carton. Other diameters and counts are packed to order.

  • 20 pcs / carton for the 7 inch reference size
  • Custom carton counts for 4 inch, 6 inch and custom diameters
  • Export marks – item code, quantity, gross and net weight
  • Palletising and container loading on request

Request a quote or a sample lap — quote your diameter, hardness grade, centre-hole type and quantity, and we will return pricing, lead time and a trial wheel for your own polishing bench.

9 / FAQ

Frequently asked questions

What is a split lap buffing wheel used for?

A split lap buffing wheel is a 100% wool felt polishing wheel whose face is parted by radial slots. It is used for precision polishing and lapping of hard, detailed surfaces — watch cases and bezels, fine jewellery, silverware, golf club heads, turbine blades and precision moulds — where the operator needs to control the finish closely instead of simply buffing a large area.

How does the 4-slot see-through design prevent over-polishing?

The four radial slots break the solid face of the lap. When the wheel spins, each slot sweeps the contact zone repeatedly, so the face reads as a blinking, see-through window. The polisher can therefore watch the actual contact point between felt and workpiece, see the scratch pattern as it clears, and lift off immediately — which is what prevents over-polishing on plated, engraved or thin sections.

Which hardness grade should I choose for watch cases or jewellery?

Use Soft or Medium for plated watch cases, hollow jewellery and any contoured or delicate surface, because those grades compress to follow the shape and keep pressure light. Move to Hard or Rock Hard when the lap has to stay flat and cut faster on watch case flanks, silver flatware, stainless fittings or tool steel. Flint Hard is the densest grade, chosen for heavy stock removal and mirror finishing on hard metals such as silverware bodies. Trial wheels are the fastest way to confirm the right grade for your process.

What sizes, thickness and centre hole options are available?

Standard diameters are 4″ (100 mm), 6″ (150 mm) and 7″ (180 mm), with custom diameters produced to order. Thickness is 1/2″ (13 mm) as standard and the standard centre hole is a pin hole sized for a tapered spindle. Thickness, bore size, slot count and slot width can all be adjusted to suit your machine and the work you are polishing.

Can you produce custom or OEM/ODM slotted felt lap wheels?

Yes. We manufacture to drawing or sample: diameter, thickness, hardness grade, slot geometry, centre-hole form and private-label packing are all variable. Share your application details or a reference wheel and we will recommend a specification, then supply pre-production samples for trial polishing before the volume order is produced.

Can’t find your size or grade combination? Send the drawing or a used wheel and we will quote it.
